Engineering Equipment

200-Ton Heavy-Duty Crawler Crane – Lattice Boom Lifting Equipment for Mega Projects

200-Ton Max Lifting Capacity
Lattice Boom (High Reach)
Crawler Chassis (All-Terrain)
360° Full Rotation

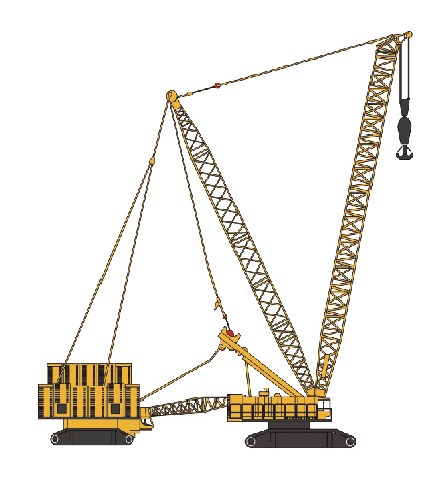

Product description: This 200-ton heavy-duty crawler crane features a high-strength lattice boom and all-terrain crawler chassis, designed for mega construction projects including luxury hotel complexes, bridge engineerin
INQUIRY

200-Ton Heavy-Duty Crawler Crane – All-Terrain Lattice Boom Lifting Solution for Iraq’s Mega Construction Projects

Overview

This 200-ton heavy-duty crawler crane is a super-class lifting workhorse engineered to tackle the most demanding heavy-lifting tasks in Iraq’s large-scale construction landscape, including luxury integrated hotel complexes, high-rise skyscrapers, bridge construction, oil refinery expansion, and critical infrastructure development. Featuring a high-strength lattice boom system, a stable all-terrain crawler chassis, and a powerful hydraulic lifting mechanism, it delivers unmatched load capacity, lifting height, and operational flexibility—even in Iraq’s extreme desert conditions, soft sand terrain, and remote job sites.

As a factory-direct supply product built to international CE/ISO/GOST standards, it offers customizable configurations, rugged durability, and cost-effective maintenance, making it the ideal choice for prime contractors, hotel developers, and infrastructure firms in Baghdad, Erbil, Basra, and across Iraq. This crane is designed to accelerate project timelines by efficiently hoisting oversized components (e.g., hotel structural steel, bridge girders, industrial generators) that standard cranes cannot handle.

Core Features & Advantages

1. Unrivaled Lifting Performance for Mega Projects

200-Ton Maximum Lifting Capacity: Engineered to lift ultra-heavy loads such as precast concrete segments for hotel atriums, 100+ ton steel bridge girders, and large-scale industrial equipment for power plants—ideal for Iraq’s flagship construction projects.
Extended Lattice Boom System: High-strength Q690D steel lattice boom extends to a maximum length of 80–100 meters (main boom + jib extension), with a lifting height of up to 120 meters. The open lattice design minimizes wind resistance, ensuring stability in Iraq’s strong desert winds (up to 80km/h).
High Load Moment Rating: 800t·m+ rated load moment with advanced load-sensing hydraulic technology, delivering precise, smooth lifting/luffing operations even at maximum reach (tip load capacity of 15–20 tons).
360° Full Rotation: Heavy-duty slewing bearing with a high-torque motor enables continuous 360° rotation with minimal backlash, allowing full coverage of the job site and eliminating the need for time-consuming crane repositioning.

2. All-Terrain Mobility & Unmatched Stability

Reinforced Crawler Chassis: Wide, heavy-duty crawler tracks (1.2m width) distribute the crane’s 450+ ton weight evenly, minimizing ground pressure (≤0.22 MPa) to prevent sinking into soft desert sand or muddy construction sites—critical for remote projects in southern Iraq.
Excellent Traction & Maneuverability: Dual high-power track motors deliver exceptional traction on rough, uneven terrain (rocky deserts, construction debris), while a compact turning radius allows navigation in tight job sites (e.g., downtown hotel complexes with limited space).
Outrigger-Free Operation (Optional): The crawler chassis provides inherent stability for most lifts, eliminating the need for time-consuming outrigger setup. For ultra-heavy loads, optional hydraulic outriggers further enhance stability on uneven ground.

3. Durability Engineered for Iraq’s Harsh Climate

Heat & Dust Resistant Design:
- Engine compartment with a dual-circuit cooling system (works efficiently at 55°C ambient temperature) to prevent overheating during Iraq’s scorching summers.
- Sealed electrical cabinet with IP65 dust-proof/waterproof rating and sand filters to protect controls, sensors, and wiring from desert sandstorms—one of the biggest challenges for construction equipment in Iraq.
Corrosion-Resistant Coating: Multi-layer anti-rust system (zinc-rich primer + epoxy midcoat + polyurethane topcoat) on all steel components, with hot-dip galvanized boom sections for long-term protection against humidity (coastal Basra) and chemical corrosion (oil refinery sites).
Rugged Hydraulic System: High-pressure hydraulic pumps (35 MPa) and motors from leading global suppliers, with a closed-loop hydraulic circuit to prevent oil leakage and ensure reliable performance in dusty environments.

4. Advanced Safety & Intuitive Operation

Ergonomic Operator Cab: Air-conditioned, soundproof, and vibration-dampened cab with an adjustable seat, dual joystick controls, and a 10-inch touchscreen display (English/Arabic interface). The display provides real-time monitoring of load weight, boom angle, wind speed, and hydraulic pressure.
Comprehensive Safety Protections (ISO 12480 Compliance):
- Overload Protection System: Auto-shuts down lifting operations when exceeding rated load to prevent structural damage.
- Boom Angle Limiter: Prevents over-luffing and boom buckling during high-reach lifts.
- Anti-Rollover Protection: Real-time monitoring of chassis tilt angle, with automatic alarm and shutdown if unsafe conditions are detected.
- Emergency Stop System: Hardwired emergency stop buttons in the cab and on the crane body for instant shutdown in critical situations.
- Optional Anti-Collision System: Integrates with other cranes on the job site to avoid collisions—essential for large hotel construction projects with multiple lifting units.
Easy Maintenance: Modular design with quick-access panels for hydraulic, electrical, and mechanical components. All critical parts (filters, seals, winch components) are standardized for easy sourcing in Iraq, minimizing downtime.

5. Customizable Configurations for Project-Specific Needs

Boom & Jib Customization: Main boom lengths from 40m to 80m; optional fixed jib (20m–40m) or luffing jib (30m–50m) for increased lifting height/reach (ideal for skyscraper hotel construction).
Counterweight Packages: Tailored counterweight configurations (100–200 tons) to optimize lifting performance for specific loads and job site conditions.
Power System Options:
- Diesel Engine: 600–800 HP high-power diesel engine (Cummins/Weichai) with low fuel consumption, compliant with EU Stage IIIA emission standards.
- Electric Motor: Optional 500kW electric motor for zero-emission operation in urban areas or indoor construction sites (e.g., hotel basement construction).
Additional Accessories: Optional heavy-duty winches (single/double drum), hook blocks (200-ton capacity), and a remote control system for precision operations in hazardous areas.
